My Company
SB Electromech
First-generation enterprise serving the power electronics industry with reliable, cost-effective electromechanical solutions.We are committed to becoming a trusted partner by delivering high-quality components and assemblies.
WHAT WE DO
Our Products

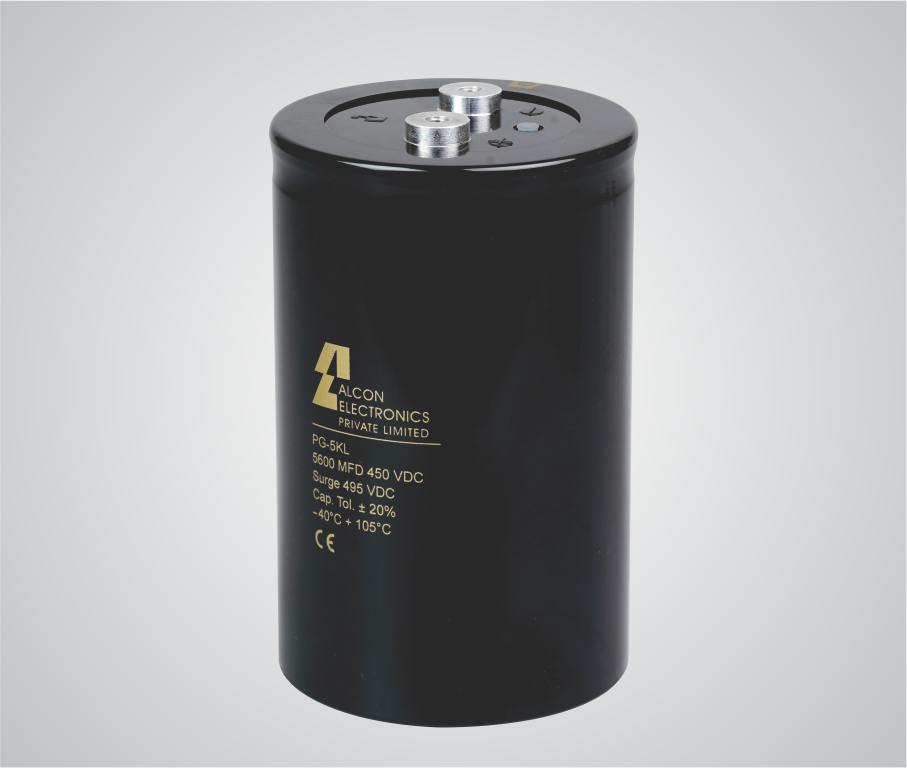

PG-5KL
High ripple current applications like PWM inverters, High KVA online UPS, Frequency converters, AC drives, Railway traction drives, High reliability power supplies, Wind generation drives, solar inverters. Rated Voltage Range : 350 VDC – 500 VDC Capacitance Range : 680 MFD TO 18000 MFD Size : 50mm X 80mm TO 90mm X 220mm Temperature Range : -40°C TO +105°C
Download
PG-PED2
HED range is designed for large instance energy discharge application like laser, X-ray, Welding, Accelerators, Magnetisers and other pulse discharge applications. Rated Voltage Range : 350 VDC – 450 VDC Capacitance Range : 680 MFD TO 6800 MFD Size : 50mm X 105mm TO 90mm X 220mm Temperature Range : -40°C TO +70°C
Download

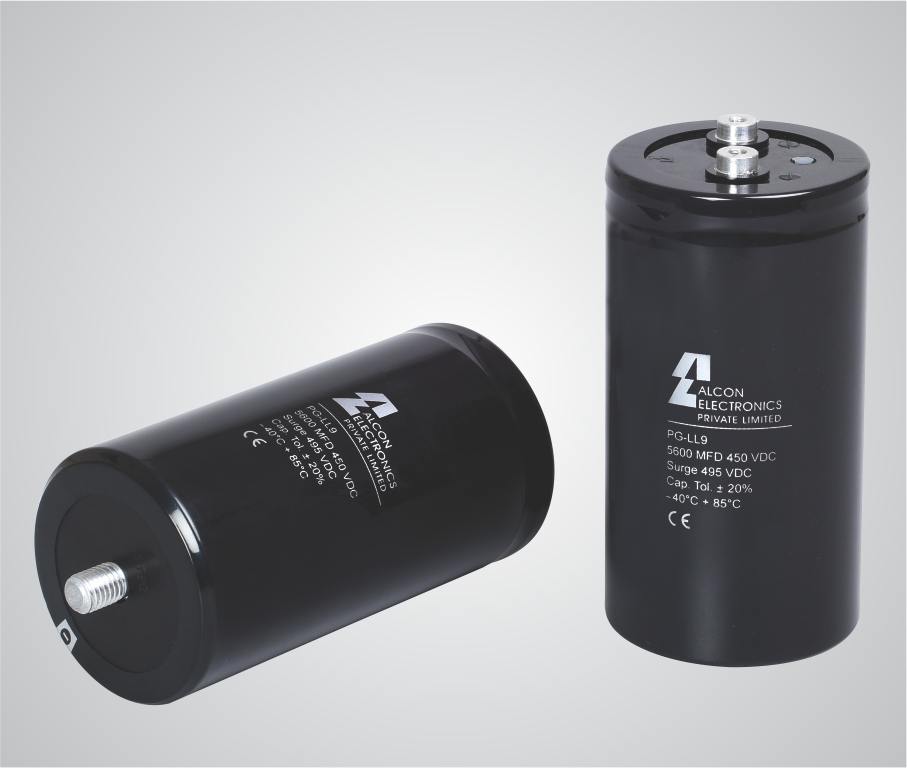

PG-LL9
Long Life Grade for High Voltage, High Ripple Current Applications like PWM Inverters,High KVA On-Line UPS, Frequency Converters, AC Drives, Renewable Energy Power Supplies. Rated Voltage Range : 315 VDC TO 450 VDC Capacitance Range : 1000 MFD TO 20000 MFD Size : 50mm X 80mm TO 90mm X 220mm Temperature Range : -40°C TO +85°C
Download

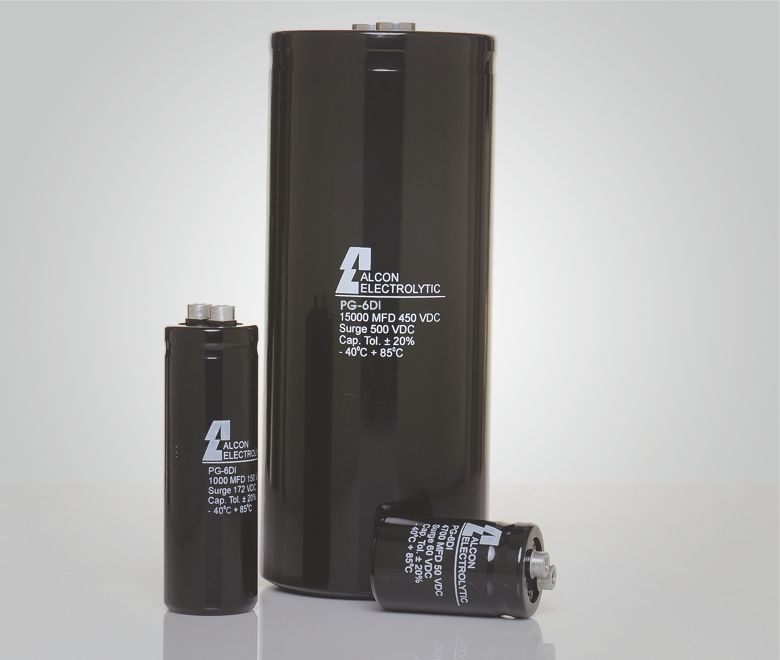

PG-6DI
High Ripple Current Applications like, PWM Inverters,High KVA On-Line UPS, Frequency Converters, AC Drives, Renewable Energy Power Supplies, Telecom SMPS. Rated Voltage Range: 50 VDC – 500 VDC Capacitance Range : 330 MFD TO 250000 MFD Size : 35mm X 62mm TO 90mm X 220mm Temperature Range : -40°C TO +85°C
Download

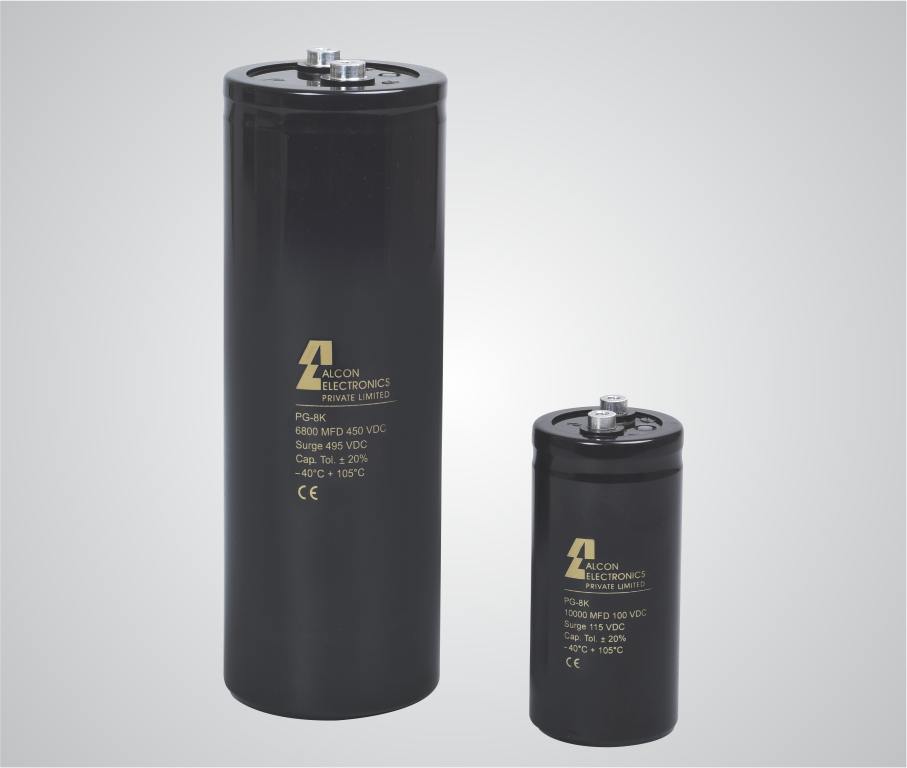

PG-8K
High Temperature 105 °C for High Ripple Current Applications like,PWM Inverters, High KVA On-Line UPS,Frequency Converters, AC Drives,Renewable Energy Power Supplies,Railway Traction, High Reliability Power Supplies. Rated Voltage Range: 50 VDC – 450 VDC Capacitance Range: 1000 MFD TO 200000 MFD Size: 35mm X 62mm TO 90mm X 220mm Temperature Range: -40°C TO +105°C
Download

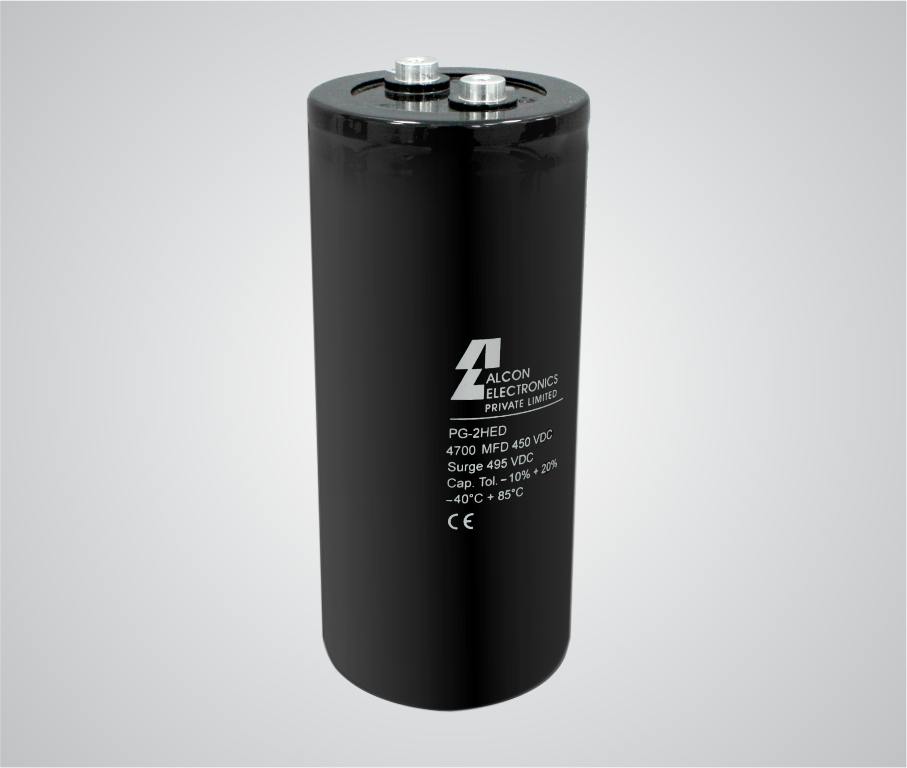

PG-2HED
HED range is designed for large instance energy discharge application like capacitor discharge welding, magnetisers and other pulse discharge applications. Rated Voltage Range : 350 VDC – 450 VDC Capacitance Range : 680 MFD TO 6800 MFD Size : 50mm X 105mm TO 90mm X 220mm Temperature Range : -40°C TO +170°C
Download
